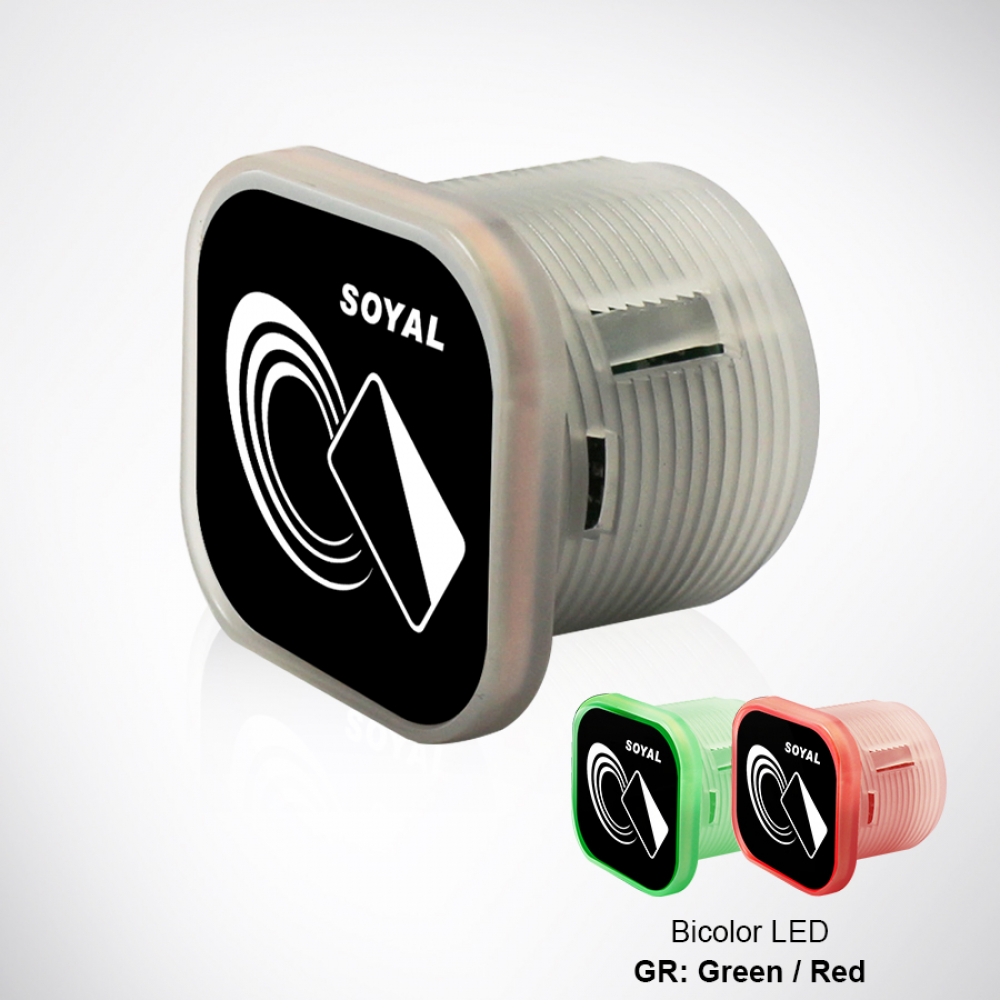

AR-101H

RFID Proximity Controller

Ultra-mini RS485 Proximity Controller with stainless steel panel by order!

Selectable working frequencies: 125kHz/ 13,56MHz

User capacity:1024; Event log: 1200

Built-in Watchdog to prevent system from hanging

Including the input of door contact, offering the alarm system of both door opening too long and being forced to open

Built-in Multi-Output: Door Lock/ Alarm/ Security trigger signal

HAve the MASTER CARD function, convenient operation

Mini Flush-Mounted design gives neat installation

Elegant design with colorful Edge Indicator



User capacity 1024
Communication Interface RS-485/9600 bps(N,8,1)
Frequency 13.56MHz
Instalation environment No
Input Egress(R.T.E)/ Door contact
Door/Alarm Lock(or Security trigger signal)/Alarm
Fingerprint temlate No
LCD No
Floors Capacity 32 Floors, 1024 Users
Time-zone 11/63(connect to Multi-Door Networking Controller)
Weight(g) 26(+/-)10
Dimension(mm) 37(L)x37(W)x31(W)
