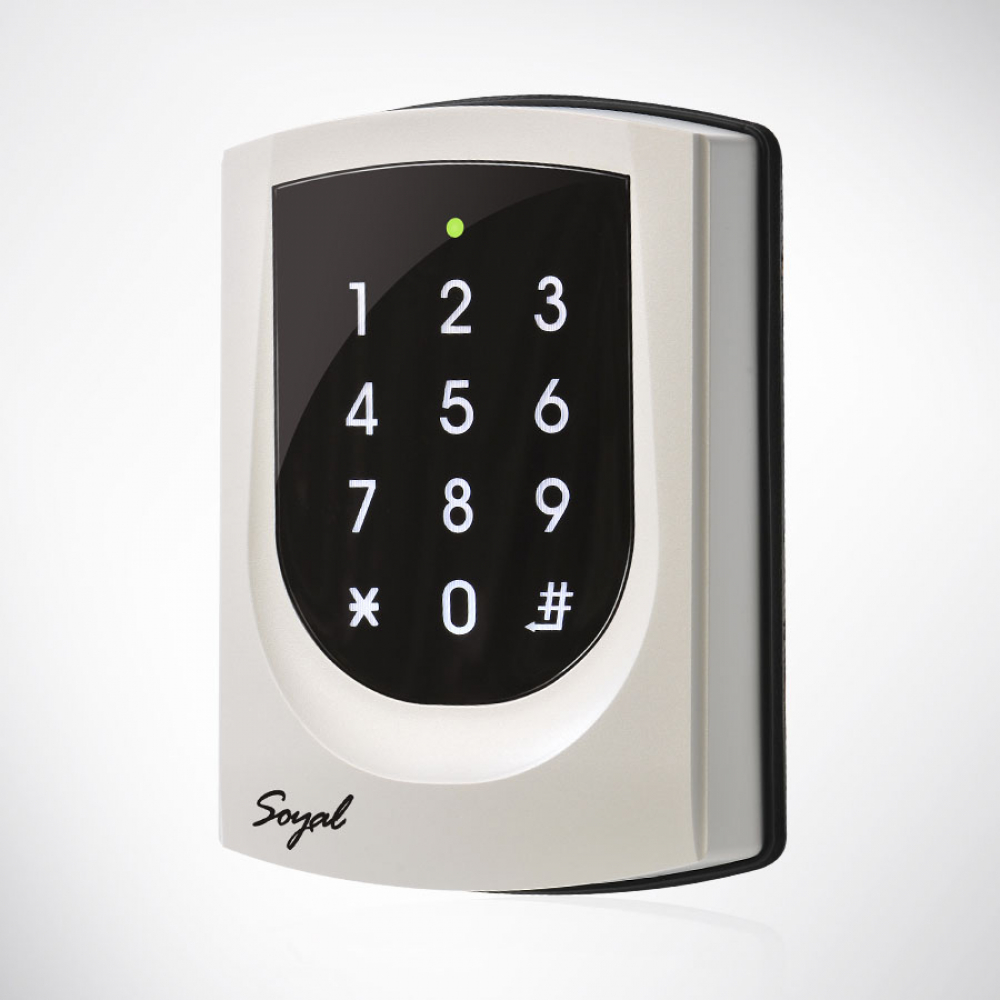

AR725E/E-M

RFID Dual-Door Controller (-M: with Metal Frame)-AR-725-E

(M: with silver metal frame)
2-Door controller with illuminated touch-panel, 125kHz/13.56MHz/Dual-band for optional

*Reminder: Please make sure to change your programming code

 RS-485 and TCP/IP communication interface
 Built-in Watch Dog to prevent the halting
 User capacity: 16,000; Event logs: 32,000
 2 control modes: M4/ M8
 Access Mode: Card Only, Card or PWD, Card and PWD
 63 auto-open zone settings and 16 sets of Auto-Open Zone editable
 WG port provides anti-pass-back function
 One more Exit Switch, Door Contact and Door Output to wiegand
 Built-in Multi-Output: Door Lock/ Alarm/ Arming/ Duress/ Security trigger signal
 SOYAL software support for networking
 Easily integrated with SOYAL or others access control system
 Use the illuminated Touch-panel for keypad, can enhance the anti- wear and the weatherproof
 Metal frame to avoid violence(AR-725E-V2-M)
 Elegant design with colorful housing to choose
 Illuminative-Key, 1 bi-color indicator and 1 beeper for identification
 Built-in Real Time Clock & Anti-Tamper functions
 Flexible to integrate with other equipments
 125kHz and 13.56MHz can be used simultaneously two channels
 Patent for new type of Relay, avoid vibrating to Mis-Trigger
 TTL or RS-485 serial output for various application and lift control
 Built-in 16 set of Alarm and 120 days of Holiday setting
 Coordinating with softwares for further application on access control, time attendance, payroll, anddoor/sensor image-monitor function
 Auto-lock of the keypad for 30 seconds after continuous failed operation by 3 times
 Including the input of door contact, offering the alarm system of both door opening too long and beingforced to open
 Intelligent to shift for standalone or networking mode while system disconnected
Support Fire buttons to make sure the fire happening, all doors open
Supporting AR-721_RB Relay Output module alternates traditional relay module, raise security, resist from stealing, and avoid wrong operation.



Item NO.

AR-725-E/E-M)

User Capacity

16,000 Users , 64 floors
32,000 Users , 32 floors(By order)
65,000 Users , 16 floors(By order)

Communication Interface

RS-485/9600 bps(N,8,1)
TCP/IP(By Order)

Frequency

125kHz or 13.56MHz or Dual Band (125kHz+13.56MHz)

Installation Environment

IP55

Intput

2 Egress(R.T.E.) / 2 Door Sensor / Tamper Switch

Output

WG Lock Relay/Alarm/Security trigger signal/Arming LED/Duress

Fingerprint Template

No

Other Interface

WG lnput
WG Output(By order)
UARTX2(TTL4800~115200)

Keypad Material

Illuminated Touch Panel

LCD

No

Floors Capacity

64 floors
32 floors(By order)
16 floors(By order)

Time-zone

63

Weight(g)

E-V2 :165±10
E-V2-M : 510±10

Dimensions(mm)

E-V2 : 110(L)X79(W)X26(H)
E-V2-M : 125(L)X89(W)X30(H)
